ExpB:測報酬

目錄

• 載入資料
• PatchTST
• Chronos
• TimesFM
• 還原 return
• 畫圖

項目	Experiment A	Experiment B
目標值	Close Price	Log Return
公式	(P_t)	((P_t/P_{t-1}))
Scaler	StandardScaler	StandardScaler
輸出	預測股價	預測報酬率
優點	接近一般時間序列 benchmark	比較符合金融建模
缺點	模型可能被價格趨勢影響	需要 inverse transform 回價格

載入資料

import yfinance as yf
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt


ticker = "AAPL"

data = yf.download(
    ticker,
    start="2010-01-01",
    end="2026-01-01"
)


df = data[["Close"]].copy()


# 處理 yfinance multi-index
if isinstance(df.columns, pd.MultiIndex):
    df.columns = df.columns.get_level_values(0)


df = df.reset_index()


df.columns = [
    "ds",
    "close"
]


df.head()

[*********************100%***********************]  1 of 1 completed

	ds	close
0	2010-01-04	6.406480
1	2010-01-05	6.417557
2	2010-01-06	6.315477
3	2010-01-07	6.303801
4	2010-01-08	6.345714

# log return
df["y"] = np.log(
    df["close"] /
    df["close"].shift(1)
)


df = df.dropna()


df.head()

	ds	close	y
1	2010-01-05	6.417557	0.001727
2	2010-01-06	6.315477	-0.016034
3	2010-01-07	6.303801	-0.001851
4	2010-01-08	6.345714	0.006627
5	2010-01-11	6.289732	-0.008861

split = int(len(df)*0.8)


train = df.iloc[:split].copy()

test = df.iloc[split:].copy()


print(train.shape)
print(test.shape)

(3218, 3)
(805, 3)

# Normalize Return
from sklearn.preprocessing import StandardScaler


scaler = StandardScaler()


train["y_scaled"] = scaler.fit_transform(
    train[["y"]]
)


test["y_scaled"] = scaler.transform(
    test[["y"]]
)

PatchTST

from neuralforecast import NeuralForecast
from neuralforecast.models import PatchTST


patch_train = train[
    ["ds","y_scaled"]
].copy()


patch_train.columns=[
    "ds",
    "y"
]


patch_train["unique_id"]="AAPL"


model = PatchTST(
    h=15,
    input_size=120,
    patch_len=12,
    stride=6,
    max_steps=300
)


nf = NeuralForecast(
    models=[model],
    freq="D"
)


nf.fit(
    patch_train
)

Seed set to 1
GPU available: True (cuda), used: True
TPU available: False, using: 0 TPU cores
HPU available: False, using: 0 HPUs
You are using a CUDA device ('NVIDIA GeForce RTX 4090') that has Tensor Cores. To properly utilize them, you should set `torch.set_float32_matmul_precision('medium' | 'high')` which will trade-off precision for performance. For more details, read https://pytorch.org/docs/stable/generated/torch.set_float32_matmul_precision.html#torch.set_float32_matmul_precision
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0]

  | Name         | Type              | Params | Mode
-----------------------------------------------------------
0 | loss         | MAE               | 0      | train
1 | padder_train | ConstantPad1d     | 0      | train
2 | scaler       | TemporalNorm      | 0      | train
3 | model        | PatchTST_backbone | 440 K  | train
-----------------------------------------------------------
440 K     Trainable params
3         Non-trainable params
440 K     Total params
1.760     Total estimated model params size (MB)
90        Modules in train mode
0         Modules in eval mode

`Trainer.fit` stopped: `max_steps=300` reached.

patch_forecast = nf.predict()


patch_return_scaled = (
    patch_forecast["PatchTST"]
    .values
)


print(patch_return_scaled)

GPU available: True (cuda), used: True
TPU available: False, using: 0 TPU cores
HPU available: False, using: 0 HPUs
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0]

[ 0.055035   -0.06732416  0.11186814 -0.09216654 -0.19092381 -0.13989282
 -0.07315946 -0.11535895 -0.38285828  0.21823967 -0.31677127 -0.02535093
 -0.3823135  -0.47748888 -0.12180007]

Chronos

import torch
from chronos import ChronosPipeline


context = torch.tensor(
    train["y_scaled"].values,
    dtype=torch.float32
)


chronos = ChronosPipeline.from_pretrained(
    "amazon/chronos-t5-small",
    device_map="auto"
)


forecast = chronos.predict(
    context,
    prediction_length=15
)


chronos_return_scaled = (
    forecast
    .mean(dim=1)
    .squeeze()
    .numpy()
)


print(chronos_return_scaled)

[-0.04900789  0.04841743  0.00472365  0.01180913 -0.00619979 -0.02125644
  0.00295228 -0.02066598 -0.03837968 -0.05107449 -0.06199793 -0.03395125
 -0.06524545 -0.04103672 -0.05904565]

TimesFM

import timesfm
import numpy as np


timesfm_model = timesfm.TimesFM_2p5_200M_torch.from_pretrained(
    "google/timesfm-2.5-200m-pytorch"
)


timesfm_model.compile(
    timesfm.ForecastConfig(
        max_context=512,
        max_horizon=128
    )
)


input_series=[
    train["y_scaled"]
    .values.astype(np.float32)
]


point_forecast, quantile_forecast = (
    timesfm_model.forecast(
        horizon=15,
        inputs=input_series
    )
)


timesfm_return_scaled = point_forecast[0]


print(timesfm_return_scaled)

[-0.12856379  0.00036838  0.05585762 -0.06376063 -0.07890935 -0.03879329
 -0.03868837  0.00240039 -0.01284213 -0.00977794 -0.03651828 -0.03141294
 -0.03970855 -0.04355175 -0.04146475]

還原 return

patch_return = scaler.inverse_transform(
    patch_return_scaled.reshape(-1,1)
).flatten()


chronos_return = scaler.inverse_transform(
    chronos_return_scaled.reshape(-1,1)
).flatten()


timesfm_return = scaler.inverse_transform(
    timesfm_return_scaled.reshape(-1,1)
).flatten()

# Return → Price
# 最後一天 training close：
last_price = train["close"].iloc[-1]

print(last_price)

135.84523010253906

def return_to_price(last_price, returns):

    prices=[]

    price=last_price

    for r in returns:
        price = price*np.exp(r)
        prices.append(price)

    return np.array(prices)

patch_price = return_to_price(
    last_price,
    patch_return
)


chronos_price = return_to_price(
    last_price,
    chronos_return
)


timesfm_price = return_to_price(
    last_price,
    timesfm_return
)

real_price = test["close"].iloc[:15]

future_date = test["ds"].iloc[:15]

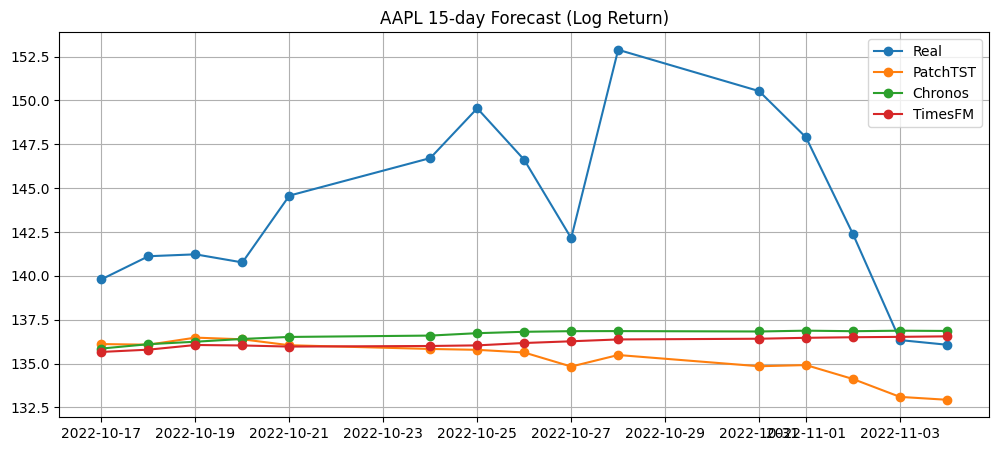

畫圖

plt.figure(figsize=(12,5))


plt.plot(
    future_date,
    real_price,
    marker="o",
    label="Real"
)


plt.plot(
    future_date,
    patch_price,
    marker="o",
    label="PatchTST"
)


plt.plot(
    future_date,
    chronos_price,
    marker="o",
    label="Chronos"
)


plt.plot(
    future_date,
    timesfm_price,
    marker="o",
    label="TimesFM"
)


plt.title("AAPL 15-day Forecast (Log Return)")


plt.legend()
plt.grid()

plt.show()

def direction_accuracy(real, pred):

    real_change = np.diff(real)
    pred_change = np.diff(pred)

    return np.mean(
        np.sign(real_change)
        ==
        np.sign(pred_change)
    )


print(
    "PatchTST:",
    direction_accuracy(
        real_price,
        patch_price
    )
)


print(
    "Chronos:",
    direction_accuracy(
        real_price,
        chronos_price
    )
)


print(
    "TimesFM:",
    direction_accuracy(
        real_price,
        timesfm_price
    )
)

PatchTST: 0.6428571428571429
Chronos: 0.6428571428571429
TimesFM: 0.42857142857142855

result = pd.DataFrame({
    "real": real_price,
    "patch": patch_price,
    "chronos": chronos_price,
    "timesfm": timesfm_price
})


result["real_direction"] = np.sign(
    result.real.diff()
)


result["patch_direction"] = np.sign(
    result.patch.diff()
)


result

	real	patch	chronos	timesfm	real_direction	patch_direction
3219	139.801453	136.108626	135.854655	135.660756	NaN	NaN
3220	141.116882	136.073303	136.101906	135.790472	1.0	-1.0
3221	141.224854	136.476319	136.242687	136.055768	1.0	1.0
3222	140.763443	136.380070	136.400976	136.029161	-1.0	-1.0
3223	144.572433	136.042494	136.515302	135.965595	1.0	-1.0
3224	146.712494	135.830125	136.592798	135.999956	1.0	-1.0
3225	149.549545	135.780658	136.729739	136.034586	1.0	-1.0
3226	146.614288	135.628417	136.808808	136.169638	-1.0	-1.0
3227	142.147659	134.827333	136.844410	136.267521	-1.0	-1.0
3228	152.887253	135.485139	136.848815	136.372979	1.0	1.0
3229	150.531219	134.844773	136.826391	136.413004	-1.0	-1.0
3230	147.890488	134.911403	136.872861	136.465545	-1.0	1.0
3231	142.373459	134.115856	136.842456	136.497788	-1.0	-1.0
3232	136.336060	133.097406	136.871525	136.520618	-1.0	-1.0
3233	136.070587	132.932807	136.856351	136.548561	-1.0	-1.0

結論

模型	方向	價格追蹤
PatchTST	較好	差
Chronos	較好	差
TimesFM	普通	差

import numpy as np
import pandas as pd

from sklearn.metrics import mean_squared_error, mean_absolute_error

def RMSE(y_true, y_pred):
    return np.sqrt(
        mean_squared_error(y_true, y_pred)
    )

last_price = train["y"].iloc[-1]

naive_price = np.repeat(
    last_price,
    len(real_price)
)

print(naive_price)

results = []


models = { "Naive": naive_price,
    "PatchTST": patch_price,
    "Chronos": chronos_price,
    "TimesFM": timesfm_price}


for name, pred in models.items():

    rmse = RMSE(real_price,pred)

    mae = mean_absolute_error(real_price,pred)

    direction = np.mean(np.sign(np.diff(real_price))==np.sign(np.diff(pred)))


    results.append(
        [
            name,
            rmse,
            mae,
            direction
        ]
    )


metrics = pd.DataFrame(
    results,
    columns=[
        "Model",
        "RMSE",
        "MAE",
        "Direction_Accuracy"
    ]
)


metrics

[-0.03277108 -0.03277108 -0.03277108 -0.03277108 -0.03277108 -0.03277108
 -0.03277108 -0.03277108 -0.03277108 -0.03277108 -0.03277108 -0.03277108
 -0.03277108 -0.03277108 -0.03277108]

	Model	RMSE	MAE	Direction_Accuracy
0	Naive	144.020814	143.938912	0.000000
1	PatchTST	9.803942	8.670493	0.642857
2	Chronos	8.711920	7.468326	0.642857
3	TimesFM	9.118357	7.808349	0.428571

print(train.tail())
print(real_price[:5])

             ds       close         y  y_scaled
3214 2022-10-10  137.847870  0.002353  0.078190
3215 2022-10-11  136.434235 -0.010308 -0.627064
3216 2022-10-12  135.805969 -0.004616 -0.309972
3217 2022-10-13  140.370773  0.033060  1.788710
3218 2022-10-14  135.845230 -0.032771 -1.878346
3219    139.801453
3220    141.116882
3221    141.224854
3222    140.763443
3223    144.572433
Name: close, dtype: float64
